Countertop clutter from plastic dish soap bottles detracts from the aesthetic and functionality of a modern sink station, increasing the risk of accidental spills and messes. A streamlined washing area requires integrated solutions that keep essential cleaning agents accessible yet out of sight. Upgrading to a built-in soap dispenser requires navigating sink compatibility, precise drilling, and ensuring a watertight seal. These steps carry material damage risks and are critical to protect cabinetry from long-term water damage. This guide provides a technical, step-by-step breakdown of installing a soap dispenser alongside a kitchen faucet. It covers material-specific drilling protocols, required tools, and long-term maintenance frameworks. By following these structured guidelines, homeowners and contractors can optimize sink workflows, mitigate installation risks, and achieve a professional-grade finish without unnecessary complications.
Standardization: Most built-in soap dispensers require a standard 1 3/8-inch (35 mm) hole, typically spaced 7 to 8 inches from the main kitchen faucet.
Material Risks: Drilling into stainless steel is a low-risk DIY task; however, drilling into quartz, granite, or ceramic carries a high risk of cracking and often warrants professional installation ($100–$300).
Refill Architecture: Modern units utilize a top-fill design or an under-sink extension tube kit, eliminating the tedious need to unscrew the reservoir bottle from below.
Maintenance Protocol: A 70/30 dilution ratio (soap to water) prevents pump clogging and extends the lifespan of the dispenser mechanism.
Before purchasing hardware or gathering tools, inspect the sink deck for pre-drilled holes. Manufacturers often include extra holes covered by metal escutcheon plates. These are traditionally used for side sprayers, filtered water dispensers, or air gaps. Utilizing an existing hole eliminates drilling risks entirely. Remove the escutcheon plate from beneath the sink using adjustable pliers to measure the diameter. Ensure the hole matches the standard 1 3/8-inch requirement for most dispenser shanks. If the hole is slightly smaller, a metal file can expand the opening for stainless steel sinks, though this requires patience and careful filing to avoid warping the deck.
When assessing existing holes, check the surrounding area for rust or hard water deposits. Clean the surface thoroughly with a mild abrasive and white vinegar to ensure the new dispenser sits flush against the deck. A clean surface guarantees the plumber's putty or silicone sealant will bond correctly, preventing future water ingress into the cabinetry below.
Strategic placement dictates the daily utility of the dispenser. Ergonomics play a primary role in this decision. Position the dispenser on the side of the dominant hand or the primary washing zone. For single-basin sinks, place the unit to the far left or right of the main water source. For double-basin configurations, positioning the dispenser between the basins or near the primary washing side yields the best results. This ensures the soap drops directly into the basin or onto a sponge without dripping across the countertop.
Clearance is equally critical for long-term functionality. Maintain a 7 to 8-inch distance from the main water fixture. This spacing prevents handle interference, ensures comfortable hand clearance during operation, and keeps the sink deck visually balanced. Measure the maximum rotation of the faucet handle to guarantee it will not strike the soap dispenser pump head during daily use.
Hardware cohesion defines a premium kitchen aesthetic. Match the dispenser’s finish to existing hardware. Common finishes include brushed nickel, matte black, chrome, brass, and oil-rubbed bronze. Pairing a stainless steel kitchen faucet with a matching stainless dispenser creates a cohesive, high-end visual standard. Disjointed finishes draw unwanted attention and disrupt the design language of the space. Consider the underlying material of the dispenser as well; solid brass construction with a stainless finish offers superior durability compared to plastic components coated in metallic paint.
Proper preparation prevents mid-installation delays. Gather the following components before beginning the project. Having the right tools on hand ensures a smooth workflow and minimizes the risk of damaging the sink or the new hardware.
| Category | Item Description | Purpose |

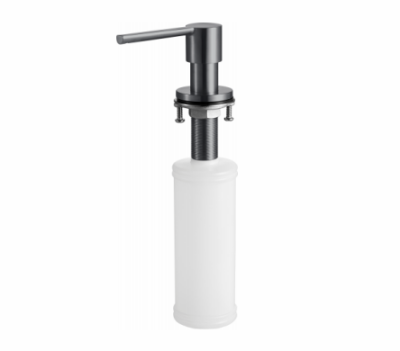

Core Hardware | Built-in soap dispenser kit | Includes pump head, escutcheon, foam/rubber washer, mounting nut, and reservoir bottle. |
Installation Tools | Basin wrench, adjustable pliers, funnel | Basin wrenches navigate tight under-sink spaces. Funnels prevent spills during priming. |
Sealing Agents | Plumber’s putty or silicone sealant | Creates a watertight barrier on uneven sink surfaces to prevent cabinet water ingress. |
Drilling Equipment | Power drill, cutting fluid, hole saws | Required only if creating a new hole. Bit type depends strictly on countertop material. |
Safety Gear | Safety goggles, work gloves, dust mask | Protects against metal shavings, stone dust, and accidental tool slips during drilling. |
Cleaning Supplies | Microfiber cloths, rubbing alcohol | Prepares the sink surface for sealing and removes excess putty after installation. |
Creating a new hole is the most critical phase of the installation. The countertop material dictates the tool selection and the associated risk level. Attempting to use the wrong drill bit will result in severe damage to the sink deck, potentially requiring a full countertop replacement.
Drilling into stainless steel is a straightforward process. Use a 1 3/8-inch bi-metal hole saw. Apply cutting oil to the drill site to reduce heat friction and protect the saw teeth. Operate the drill at a low speed while applying steady, downward pressure. High speeds will overheat the metal, dull the blade instantly, and potentially warp the sink deck. Stop periodically to reapply cutting oil and clear away metal shavings. Once the hole is cut, use a half-round metal file to smooth the sharp edges, preventing injury during the hardware installation phase.
Composite materials require a carbide-tipped hole saw. Place a layer of masking tape over the intended drill site. The tape provides traction for the drill bit and prevents the surface material from chipping as the teeth bite into the composite. Maintain a medium speed and let the tool do the cutting without forcing it. Excessive downward pressure can cause the composite material to crack or splinter on the underside. Keep the drill perfectly perpendicular to the surface to ensure a clean, straight hole that will accommodate the dispenser shank properly.
Stone and ceramic surfaces present severe cracking risks. These materials require a diamond core bit. The process demands a continuous water coolant barrier to prevent thermal shock. Installers often create a ring of plumber's putty around the drill site and fill it with water to keep the bit cool. If experience with masonry drilling is lacking, reconsider the DIY approach. The total cost of ownership for replacing a cracked quartz countertop far outweighs the $100–$300 cost of hiring a professional. Professionals carry insurance and possess the specialized tools required to bore through dense stone without compromising the structural integrity of the countertop.
| Material | Required Drill Bit | Coolant Required | Risk Level |
Stainless Steel | Bi-metal hole saw | Cutting oil | Low |
Acrylic / Composite | Carbide-tipped hole saw | None (Masking tape for traction) | Moderate |
Granite / Quartz | Diamond core bit | Continuous water pool | High |
Ceramic / Porcelain | Diamond core bit | Continuous water pool | High |
Once the hole is prepared, installing a built-In soap dispenser takes only a few minutes. Follow these sequential steps to ensure a secure, watertight fit that will withstand years of daily use.
Clean the perimeter of the hole thoroughly. Remove all dust, grease, or old sealant using rubbing alcohol and a microfiber cloth. If the provided foam or rubber washer is insufficient for the sink's texture, discard it. Instead, apply a thin, continuous bead of plumber’s putty around the base of the dispenser escutcheon. This guarantees a waterproof seal against the deck. For porous stone countertops, substitute plumber's putty with 100% silicone sealant, as the oils in putty can stain granite and marble over time.
Feed the pump base and the threaded shank down through the sink hole. Ensure the spout aligns correctly over the basin. The spout must reach far enough into the sink to prevent soap from dripping onto the deck. Verify that the unit does not tilt. Have a second person hold the top of the dispenser in the correct alignment while the securing hardware is attached from below.
Move beneath the sink. Slide the friction washer onto the threaded shank, followed by the mounting nut. Hand-tighten the nut first. Return to the top side to verify the alignment remains perfect. Once confirmed, secure the nut firmly using a basin wrench or adjustable pliers. Avoid over-tightening. Excessive force can strip plastic threads or crack ceramic sink decks. Wipe away any excess plumber's putty or silicone that squeezes out from under the escutcheon plate on the top side of the sink.
Thread the plastic soap bottle onto the bottom of the shank. Ensure it is snug to prevent leaks, but do not over-torque the plastic neck. The bottle should hang vertically without resting against plumbing pipes, garbage disposals, or water supply lines. If the bottle touches a vibrating appliance like a disposal, the friction can wear a hole in the plastic over time.
Working from above the counter, remove the pump head. Insert a funnel into the top of the shank. Pour liquid soap into the reservoir, leaving a half-inch of space at the top. This gap prevents overflow when the pump tube displaces the liquid. Insert the pump head and press repeatedly to prime the suction tube until soap dispenses. The initial priming may take 10 to 15 pumps to draw the thick liquid up the tube.
Standard 17-ounce reservoirs require frequent refilling. This maintenance disrupts workflow, even with an efficient kitchen faucet setup. For heavy-use kitchens, standard bottles empty quickly, leading to frustration and wasted time. Refilling from the top can also lead to accidental overflows if the user misjudges the remaining capacity of the hidden bottle.
Bypass the small bottle entirely by utilizing a flexible silicone extension tube. These kits usually measure 36 to 40 inches in length. The tube attaches directly to the bottom of the pump shank, replacing the standard reservoir bottle. Most kits include multiple stopper caps to fit various sizes of bulk soap containers.
Route the silicone tube directly into a bulk-sized, one-gallon dish soap jug resting on the cabinet floor. This setup supports a highly functional, eco-friendly kitchen faucet station. It drastically reduces the frequency of purchasing small plastic soap bottles, lowers plastic waste, and provides months of uninterrupted use. Ensure the tube does not kink or rest against sharp objects under the sink. A one-way check valve installed at the bottom of the tube prevents the soap from flowing back into the jug, maintaining the prime indefinitely.
If water drips into the cabinet below the dispenser, the seal has failed. The mounting nut may have vibrated loose, or the plumber's putty has dried out. Re-tighten the mounting nut from below. If the leak persists, remove the unit, clean the area, and reapply a fresh bead of silicone sealant or putty. Inspect the sink deck for hairline cracks that might be allowing water to bypass the hardware entirely.
When a dispenser loses its prime, users must pump multiple times to get soap. Check the suction tube for hairline cracks. Ensure the tube is firmly pushed into the bottom of the pump head. A loose connection breaks the vacuum, allowing the soap to fall back into the reservoir. If using an extension tube, verify that the check valve is functioning correctly and is not clogged with dried soap.
Thick, concentrated dish soaps will eventually clog the internal spring mechanism. Dilute the soap with 30% water to reduce viscosity. This ensures smooth operation and extends the hardware's lifespan. Strictly avoid soaps containing exfoliants, beads, or glitter. These particulate additives will permanently jam the pump mechanism, requiring a complete replacement of the pump head.
Flush the pump mechanism with hot water every three to four months. This dissolves internal soap buildup and keeps the spring moving freely. Fill a cup with hot water, insert the pump tube, and pump the water through the spout into the sink. Avoid abrasive cleaners or bleach on the exterior finish or internal components, as harsh chemicals degrade internal rubber gaskets and strip protective coatings from the metal finish.
| Symptom | Likely Cause | Solution |
Pump sticks in down position | Soap buildup in spring mechanism | Flush with hot water; dilute soap 70/30. |
Water leaking under sink | Failed putty seal or loose nut | Reapply silicone sealant and tighten mounting nut. |
Loss of prime (requires multiple pumps) | Cracked tube or loose connection | Replace suction tube; check for vacuum leaks. |
Soap dispenses erratically | Particulates clogging the nozzle | Clean nozzle with a pin; switch to smooth liquid soap. |
Measure available sink holes or map out a safe drilling location 7 to 8 inches from the main water fixture.
Verify the countertop material to determine if DIY drilling is safe or if a professional contractor is required.
Decide between a standard reservoir bottle or an extension tube kit based on household usage volume.
Purchase a dispenser with a finish that exactly matches existing sink hardware, such as a high quality kitchen faucet.
A: Most residential dispensers require a 1 3/8-inch (35 mm) diameter hole. This standard size accommodates the threaded shank of nearly all major hardware brands.
A: Industry standard dictates 7 to 8 inches from the center of the faucet. This spacing ensures adequate hand clearance and prevents hardware collision during daily use.
A: No. Modern built-in dispensers feature a top-fill design. You simply pull the pump head straight up and pour soap in from above the counter using a funnel.
A: While possible with a diamond core bit and water cooling, it is highly recommended to hire a professional due to the high risk of cracking the stone.
A: The most common causes are a clogged pump head, a cracked suction tube breaking the vacuum, or an empty reservoir. Flushing with hot water and diluting soap usually resolves this.
A: If drilling through stone or ceramic is required, plumbers or countertop specialists typically charge between $100 and $300 for labor and risk assumption.
