The visual appeal of a minimalist bathroom often masks the harsh realities of plumbing infrastructure. Buyers frequently make aesthetic choices that result in structural nightmares. Selecting the wrong shower form factor causes severe budget overruns. It leads to incompatible water pressure issues and catastrophic maintenance failures. Smashing expensive tiles to fix a leaking valve is a reality many property owners face. This guide strips away the marketing gloss. It provides a hard-data comparison between bar (exposed) and concealed shower systems. It evaluates them on installation realities, long-term maintenance, and Total Cost of Ownership (TCO). Readers will learn how to match form factors with building infrastructure for both residential and commercial applications.
Labor Cost Discrepancy: Installing a concealed system typically incurs a 30%–50% premium in labor costs due to wall chasing, cavity construction, and complex waterproofing requirements.
The "False Economy" Risk: Purchasing cheap concealed valves is a critical error; if the manufacturer discontinues the replacement cartridge, future repairs will require destroying the bathroom wall.
Maintenance Accessibility: Bar mixers offer zero-damage, external maintenance, making them the pragmatic choice for rapid retrofits and high-turnover commercial environments.
System Compatibility: Neither form factor dictates temperature control. Both can (and should) utilize thermostatic technology, but their performance heavily depends on the building’s water pressure (Combi boiler vs. gravity-fed systems).
Buyers frequently confuse installation types with control mechanisms. Separating the physical form factor from the internal temperature technology prevents costly procurement mistakes. Every system relies on three fundamental components. The mixing valve controls the temperature and water flow. The diverter switches water between different outlets. The connecting hardware links the water supply to the showerheads. How these components are housed defines the system type.

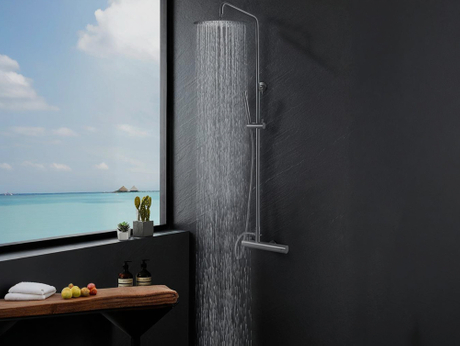

A bar mixer is a horizontal, wall-mounted unit. The valve, pipework connections, and controls sit entirely outside the finished wall. Hot and cold water feeds protrude through the tiles. They connect directly into the rear of the exposed bar. This design keeps all mechanical parts visible and accessible. Standard bar mixers utilize a 150mm distance between the hot and cold pipe centers. This standardization allows installers to swap out old units without altering the underlying plumbing infrastructure.
A concealed system hides the mechanical components. The mixing valve and pipework are buried within the wall cavity. Only the control plate (escutcheon) and handles remain visible. These systems come in various configurations. Installers can select 1, 2, or 3-outlet configurations. This allows users to control multiple showerheads or body jets from a single hidden valve. The internal rough-in box requires a specific wall depth, typically between 70mm and 100mm, to house the brass body safely.
Manual valves are highly vulnerable to pressure drops. If a toilet flushes or a washing machine fills, the cold water pressure drops. This causes sudden, dangerous temperature spikes. Both concealed and exposed systems must utilize thermostatic cartridges. Thermostatic technology provides necessary anti-scald safety. It uses a wax element that expands and contracts based on water temperature. This automatically balances pressure fluctuations to maintain a constant water temperature within a fraction of a degree.
The bar mixer represents the pragmatic, accessible approach to bathroom design. It prioritizes function, ease of access, and cost-effective maintenance over minimalist aesthetics. Property managers and homeowners often select this form factor for rapid renovations.
Rapid Installation: The unit bolts directly to existing pipework. It is ideal for surface-level bathroom upgrades. Installers do not need to perform any re-tiling or wall destruction. The standard 150mm pipe centers mean a new unit can replace an old one in minutes.
Non-Destructive Maintenance: The entire unit can be isolated quickly. Maintenance staff can unbolt and replace it in under an hour. This requires touching absolutely zero tiles. If a cartridge fails, the repair process is entirely external.
Multi-Generational Flexibility: These units are often paired with adjustable riser rails. This makes it incredibly easy to change the showerhead height. It accommodates children, adults, or elderly users seamlessly. The slide mechanism allows for instant ergonomic adjustments.
Stylistic Focal Point: The exposed hardware naturally lends itself to specific designs. It works perfectly for industrial, vintage, or heritage bathroom aesthetics. The exposed pipework becomes a deliberate design feature rather than a hidden utility.
Spatial Intrusion: The hardware protrudes directly into the shower enclosure. This can cause a feeling of visual clutter. It creates physical restriction in micro-bathrooms or tight cubicles. Users may bump into the valve in narrow spaces.
Cleaning Dead Zones: The physical design creates maintenance challenges. The gap between the bar, the exposed riser, and the wall accumulates debris. Limescale and soap scum build up in these hard-to-reach areas. Cleaning staff must spend extra time scrubbing behind the exposed pipes.
Aesthetic Limitations: The bulky nature of the valve limits design versatility. It is very difficult to integrate into ultra-modern or Japandi designs. Luxury minimalist aesthetics usually reject exposed plumbing in favor of flush surfaces.
Installing a bar mixer follows a straightforward sequence. First, the plumber isolates the main water supply. Next, they attach offset connectors, known as S-unions, to the wall pipes. These connectors allow for minor width adjustments. The installer then secures the mixer body using compression nuts and rubber washers. Finally, they attach the riser rail and the flexible hose. This entire process rarely exceeds two hours. It requires basic hand tools and zero structural modifications.
The concealed mixer represents the design-led, integrated approach. It prioritizes clean lines and spatial efficiency but introduces significant structural dependencies. Architects and interior designers favor this system for high-end residential and commercial builds.
Spatial Optimization: Hiding the hardware removes vertical risers and bulky valves. This maximizes elbow room in tight enclosures. It is highly beneficial for small apartments or compact hotel bathrooms. The flat profile prevents users from bumping into hot metal components.
Architectural Aesthetics & Wet Room Integration: The hidden design delivers a flush, streamlined look. It is much easier to wipe down. The minimal exposed surface area prevents hard water stains. A simple wipe across the control plate keeps the enclosure looking pristine.
Multi-Outlet Customization: Designers gain complete architectural freedom. It allows for independent placement of the control valve and the outlets. Users can place the valve at the entrance to turn on water without getting wet. The rain head can sit centrally on the ceiling, while body jets line the side walls.
Waterproofing Vulnerability: Leaks occur behind the tile and waterproofing membrane. If improperly sealed, this causes severe structural water damage. The damage often progresses for months before it is visually detected. Repairing these leaks requires tearing down the wall.
Working Blind: Maintenance is inherently difficult. Plumbers must perform repairs through a small removable service panel or directly through the control plate aperture. This severely complicates diagnostics and increases labor time. Dropping a screw behind the wall can cause significant delays.
Installation Depth: The rough-in valve requires sufficient wall cavity depth. Builders must chase brickwork or construct stud false walls. This consumes floor space and increases construction material costs. The minimum depth requirement often dictates the entire bathroom layout.
Installing a concealed system is a multi-day, multi-trade process. First, the plumber chases the wall or builds a stud partition to accommodate the 70mm to 100mm depth requirement. They mount the rough-in valve securely to timber noggins to prevent movement. Next, they route the internal pipework to the designated outlet locations. The necessary step involves applying a waterproof tanking membrane around the valve housing. The tiler then finishes the wall, leaving a small aperture for the controls. Finally, the plumber returns for the second fix, installing the finishing trim and handles. Any error in the waterproofing stage guarantees future structural failure.
Choosing between these systems requires evaluating specific building infrastructure. Buyers must look beyond aesthetics and analyze the engineering realities. The decision impacts long-term budgets, daily operations, and maintenance workflows.
The installation timelines differ drastically. A standard bar mixer takes roughly two hours to install. A concealed system requires one to two days of labor. It involves first fix plumbing, complex waterproofing, tiling, and second fix installation. This creates a massive TCO driver. Property owners face a 30%–50% labor markup for concealed installations.
Buyers must also avoid the brand-mixing trap. Mixing different brands for concealed valves and diverters is dangerous. It often leads to thread mismatches. This directly causes catastrophic behind-wall leaks. Always buy a complete Shower Mixer system from a single manufacturer to ensure component compatibility.
A building's water pressure dictates system performance. High-pressure systems, like Combi boilers, seamlessly support both concealed and exposed mixers. They provide adequate flow for large rain heads, often delivering 12 to 15 liters per minute.
Low-pressure systems, such as gravity-fed tanks, require careful valve selection. Concealed rain heads will deliver a very poor experience here. They require a supplemental water pressure pump to function correctly. Furthermore, consider pre-filtration needs. Concealed systems are highly susceptible to sediment blocking internal nozzles. Inline water filtration is strongly recommended in hard water or older plumbing areas to protect the internal ceramic discs.
Risk mitigation is necessary for hidden plumbing. For concealed systems, buyers must mandate the purchase of solid brass or SUS304 stainless steel. Never purchase cheap zinc alloy valves. Zinc corrodes rapidly behind the wall when exposed to moisture and temperature fluctuations. Buyers must source from established brands with a 10+ year guarantee on replacement cartridge availability. If a cartridge becomes obsolete, the entire wall must be demolished to replace the rough-in valve.
Commercial projects require strict standardization. In hotel and hospitality settings, a standardized hotel shower mixer is usually a heavy-duty concealed unit. It features tamper-proof plates to prevent guest interference. However, it strictly requires a highly accessible service-panel protocol for rapid turnaround by maintenance staff.
Procurement and B2B sourcing demand foresight. When sourcing a wholesale shower valve or a bulk thermostatic shower mixer for multi-unit developments, standardization is key. Choosing a concealed shower mixer for project builds requires locking in the rough-in valve specs early. This must happen in the architectural phase to ensure uniform plumbing across all units.
Commercial installations require strict adherence to safety regulations. Thermostatic mixing valves must often meet specific anti-scald standards. These certifications guarantee that the valve will shut off the water supply in under two seconds if the cold water feed fails. When selecting hardware for public or commercial spaces, verifying these certifications is non-negotiable. Exposed bar mixers frequently carry standard domestic approvals, while heavy-duty concealed valves are engineered to pass rigorous commercial testing protocols.
Evaluating the true cost requires looking at a ten-year horizon. Upfront costs include the unit price, plumber day rate, and wall preparation materials. However, lifecycle costs reveal the true financial impact of the initial hardware selection.
For a bar mixer, a 10-year lifecycle might involve a full unit replacement. This is a low-cost event with zero structural damage. The maintenance team simply isolates the water, unbolts the old unit, and attaches a new one. The total cost remains confined to the hardware and one hour of labor. The required tools are minimal, usually just an adjustable spanner and an Allen key.
For a concealed mixer, the lifecycle involves cartridge replacements. This is a moderate cost if the part is readily available. If the cartridge is obsolete, the cost escalates to thousands of dollars. Maintenance teams must smash tiles, re-plumb the new rough-in valve, re-waterproof the cavity, and re-tile the enclosure. This also results in significant room downtime for commercial properties. The required tools include specialized cartridge pullers, silicone sealant, grout removal tools, and potentially a tile cutter.
Consider a hypothetical 50-unit residential development. Installing bar mixers might cost $150 per unit in hardware and $100 in labor, totaling $12,500. Installing concealed mixers might cost $300 in hardware and $400 in labor, totaling $35,000. The upfront premium is $22,500. Over ten years, if 10% of the concealed valves fail and require tile destruction at $1,000 per repair, the maintenance liability adds another $5,000. Developers must weigh this premium against the increased property valuation generated by luxury bathroom aesthetics.
For facility managers, specifying a commercial shower mixer means balancing expectations. Managers must balance the luxury aesthetic expected by guests with rapid-repair requirements. Standardized, accessible cartridges are non-negotiable for commercial ROI. A hotel cannot afford to leave a room out of order for three days due to a minor valve leak.
Evaluation Metric | Bar Shower Mixer (Exposed) | Concealed Shower Mixer |
Upfront Unit Cost | Generally lower; sold as all-in-one complete kits. | Higher; requires separate rough-in valves and exterior trims. |
Installation Labor | Low (1-2 hours); bolts directly to existing surface pipes. | High (1-2 days); requires wall chasing, stud work, and waterproofing. |
Maintenance Cost | Very Low; zero tile damage during repairs or replacements. | High; severe risk of tile destruction if internal parts are obsolete. |
Space Efficiency | Poor; protrudes into the shower enclosure, reducing elbow room. | Excellent; sits flush against the wall, maximizing usable space. |
Water Pressure Needs | Adaptable; works well with both high and low-pressure systems. | Demanding; often requires high pressure or supplemental pumps. |
Ideal Application | Rapid retrofits, budget renovations, multi-generational homes. | New builds, luxury wet rooms, high-end commercial projects. |
The final decision ultimately rests on the renovation scope and building infrastructure. The space and user decision model provides a clear pathway for property owners and developers. Choose a concealed mixer if undertaking a back-to-brick full renovation. It is ideal for building a high-end wet room or maximizing space in a micro-bathroom. It is also the standard for luxury commercial projects where aesthetics drive ROI.
Choose a bar mixer if updating an existing bathroom without re-tiling. It is perfect for strict budgets. It is highly recommended if users require adjustable heights for a multi-generational family. It is the best choice if property managers prioritize ease of maintenance over minimalist design.
Follow this shortlisting logic. Never compromise on internal materials. Insist on solid brass construction and thermostatic safety controls regardless of the chosen form factor.
Verify the building's water pressure (bar rating) with a certified plumber before selecting a valve.
Confirm the boiler type (Combi vs. gravity-fed) to ensure flow compatibility with large rain heads.
Select a system with a minimum 10-year guarantee on replacement cartridge availability.
Install inline water filters on the main supply line if the property is located in a hard water area.
A: It is virtually impossible. Concealed systems require wall cavity access and new pipe routing. This necessitates extensive tile removal, wall chasing, and complete re-waterproofing of the affected area.
A: They do not leak more frequently than exposed mixers. However, the consequences of a leak are far more severe. Water escapes behind the waterproofing membrane, causing hidden structural damage that requires costly repairs.
A: The standard height is typically 210cm from the floor. However, concealed systems allow for custom heights based on user preference. This measurement must be finalized before the wall is closed and tiled.
A: Yes, especially if pairing it with a large overhead rain shower. Gravity-fed systems usually require a supplemental water pump to function adequately and deliver the required flow rate for concealed setups.
A: The best option is a commercial-grade concealed thermostatic valve. It must feature a highly accessible service panel, solid brass construction, and a guaranteed 15-year parts availability to minimize room downtime.
A: They typically last 5 to 10 years, depending heavily on water hardness. Hard water areas require inline filtration to prevent premature cartridge failure and severe sediment buildup inside the valve body.
